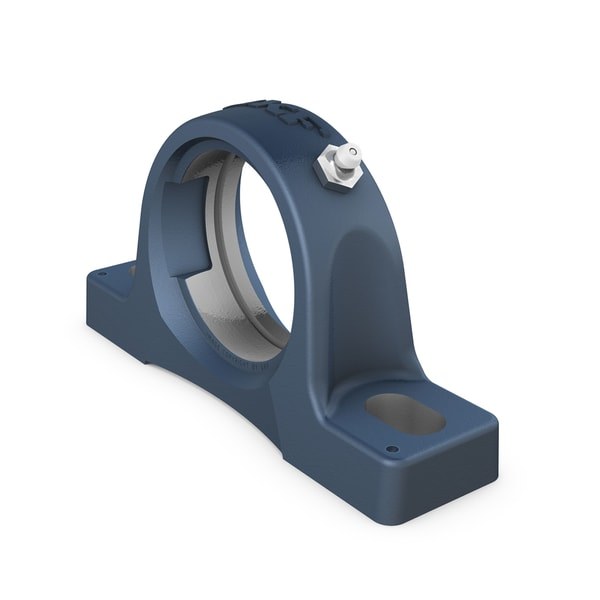

SYJ 512
| SKU | SYJ 512 |
|---|---|
| Product Type | Pillow Block for Insert Bearings |
| Brand | SKF |
| Seat Diameter | 110mm |
| Centre Height | 69.8mm |
| Bolt Centres | 188.5mm |
| Number of Bolts | 2 |
| Housing Material | Cast iron |
Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface. This variant is compliant with Japanese standards.
Additional specs
- Fastening bolt hole type: Plain
- Housing overall width: 65mm
- Coating: Without
- Grease fitting: With
- Relubrication hole: With
