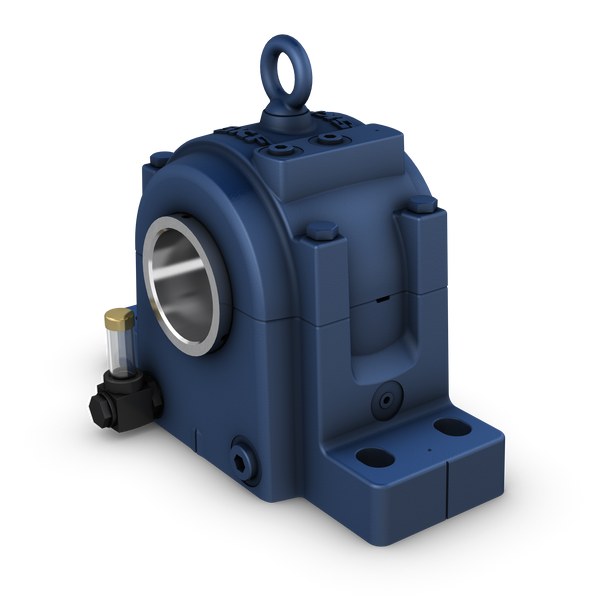

SONL 222-522
| SKU | SONL 222-522 |
|---|---|
| Product Type | Plummer Block |
| Brand | SKF |
| Seat Diameter | 200mm |
| Centre Height | 160mm |
| Bolt Centres | 347mm |
| Bolt Size | 24mm |
| Number of Bolts | 4 |
| Housing Material | Cast iron |
SONL pillow (plummer) block housings are specially designed for oil lubrication. They can accommodate high temperatures and bearings operating at high speeds. They have a strong, stiff design and are characterized by a number of built-in features that maximize the effects of the lubricant and extend bearing service life.
Additional specs
- Housing configuration: Two-piece
- Mounting arrangement: Through shaft/Shaft end
- Fastening bolt hole type: With holes (unspecified type)
- Bearing housing seal type: Oil seal
- Housing lubrication feature/possibility: Oil
- Width of bearing seat: 71mm
- Centre distance between bolt holes (axial direction): 75mm
- Eye bolt: M12
