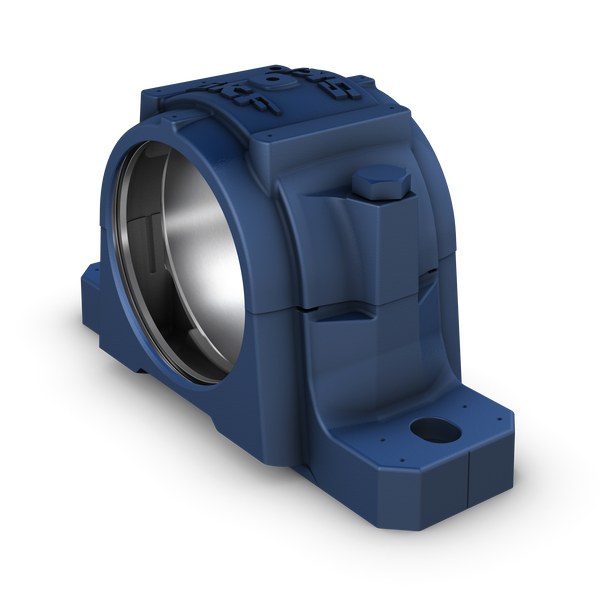

SNLN 3024
| SKU | SNLN 3024 |
|---|---|
| Product Type | Plummer Block |
| Brand | SKF |
| Seat Diameter | 180mm |
| Centre Height | 112mm |
| Bolt Centres | 320mm |
| Bolt Size | 24mm |
| Number of Bolts | 2 |
| Housing Material | Cast iron |
Plummer (pillow) block housings in the SNLN 30 series are robust and suitable for tough operating conditions. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
Additional specs
- Housing configuration: Two-piece
- Mounting arrangement: Through shaft/Shaft end
- Fastening bolt hole type: With holes (unspecified type)
- Bearing housing seal type: Without
- Housing lubrication feature/possibility: Grease
- Cap bolt: M20x100
- Width of bearing seat: 70mm
- Centre distance between bolt holes (axial direction): 26mm
- Tightening torque, cap bolt: 200N·m
- Tightening torque, attachment bolt: 665N·m
- Grease fill, 20%: 250g
- Grease fill, 40%: 450g
