SAF 226
| SKU | SAF 226 |
|---|---|
| Product Type | Pillow Block |
| Brand | SKF |
| Seat Diameter | 230mm |
| Centre Height | 152.4mm |
| Bolt Centres | 388.938mm |
| Bolt Size | 22.225mm |
| Number of Bolts | 4 |
| Housing Material | Cast iron |

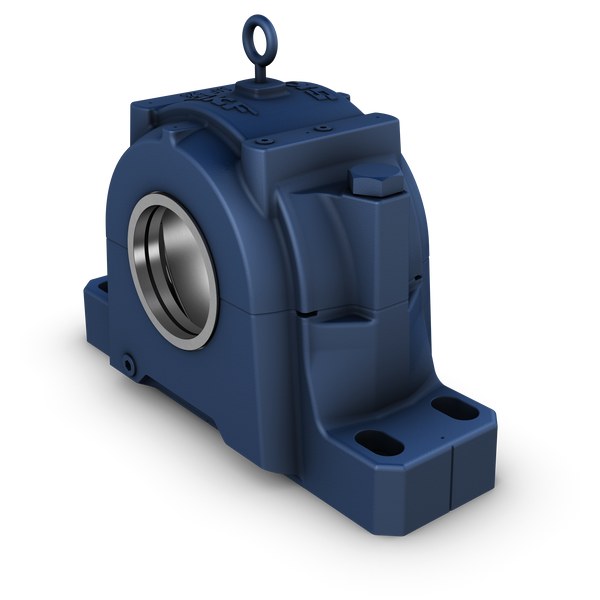

SAF split plummer (pillow) block housings have a two-piece, cast metal construction with inch dimensions. These housings have been developed to be the best choice for design, quality, robustness, and cost efficiency. SAF housings, when used with SKF bearings, seals and related components, provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment.
Additional specs
- Housing configuration: Two-piece
- Mounting arrangement: Through shaft/Shaft end
- Fastening bolt hole type: Cast holes
- Bearing housing seal type: Labyrinth seal
- Housing lubrication feature/possibility: Grease/Oil
- Cap bolt: 2 x 1-8 UNC x 5-1/2
- Centre distance between bolt holes (axial direction): 82.55mm
