RNAO 12X22X12 TN
| SKU | RNAO 12X22X12 TN |
|---|---|
| Product Type | Needle Roller without Inner Ring |
| Brand | SKF |
| Inside Diameter (I.D) | 12mm |
| Outside Diameter (O.D) | 22mm |
| Width (W) | 12mm |

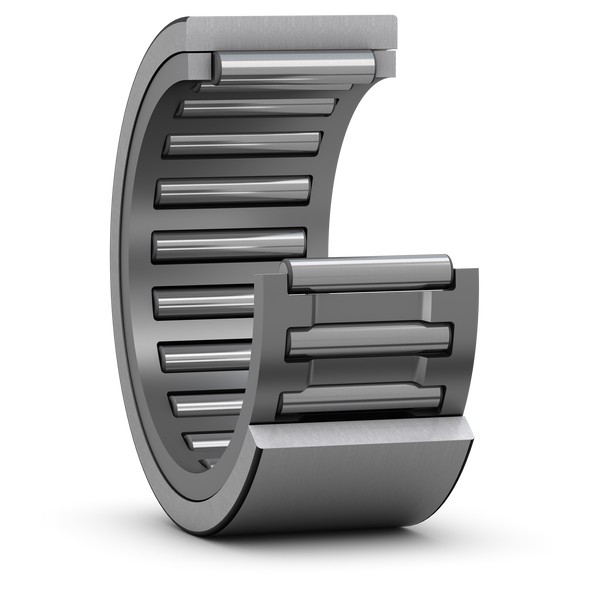

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. Bearings without flanges on the outer ring are separable, i.e. the outer ring and the needle roller and cage assembly can be mounted separately.
Additional specs
- Basic dynamic load rating: 9.52kN
- Basic static load rating: 10kN
- Limiting speed: 30000r/min
- Reference speed: 26000r/min
- Number of rows: 1
- Bearing part: Bearing without inner ring
- Cage: Non-metallic
- Sealing: Without
- Aligning feature: Without
- Outer ring type: Machined (solid)
- Number of flanges, outer ring: 0
- Lubricant: None
- Relubrication feature: Without
- Material, bearing: Bearing steel
- Coating: Without
- Tolerance class: Normal
