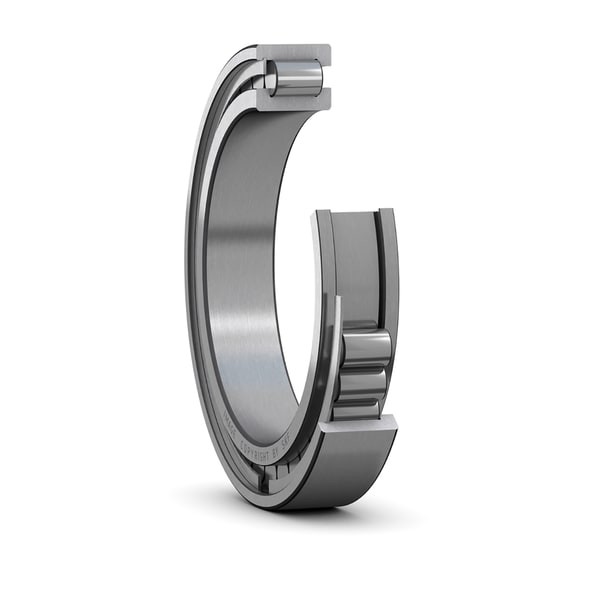

NCF 2924 CV
| SKU | NCF 2924 CV |
|---|---|
| Product Type | Cylindrical Roller NCF |
| Brand | SKF |
| Inside Diameter (I.D) | 120mm |
| Outside Diameter (O.D) | 165mm |
| Width (W) | 27mm |
Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.
Additional specs
- Basic dynamic load rating: 172kN
- Basic static load rating: 290kN
- Limiting speed: 2200r/min
- Reference speed: 1800r/min
- Number of rows: 1
- Bore type: Cylindrical
- Cage: Without
- Radial internal clearance: CN
- Sealing: Without
- Lubricant: None
- Relubrication feature: Without
- Locating feature, bearing outer ring: None
- Tolerance class: Normal
- Number of flanges, outer ring: 1
- Loose flange: None
- Number of flanges, inner ring: 2
- Bearing part: Complete bearing
- Coating: Without
- Design: Non-separable
- Axial displacement capability: In one direction
