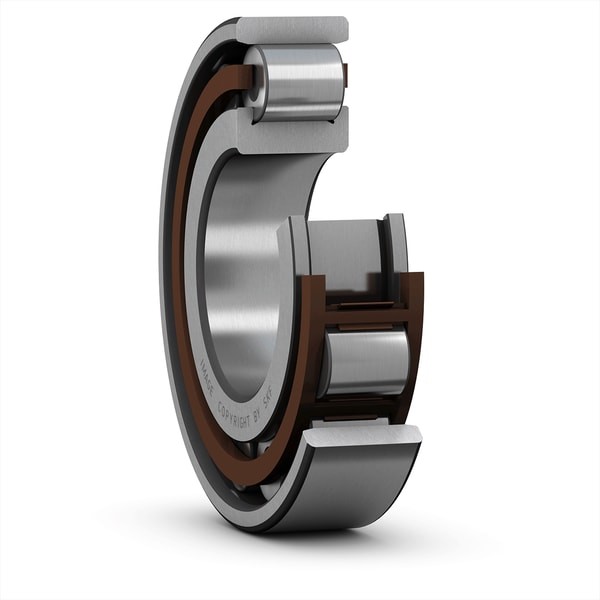

N 204 ECP
| SKU | N 204 ECP |
|---|---|
| Product Type | Cylindrical Roller N |
| Brand | SKF |
| Inside Diameter (I.D) | 20mm |
| Outside Diameter (O.D) | 47mm |
| Width (W) | 14mm |
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Additional specs
- Basic dynamic load rating: 28.5kN
- Basic static load rating: 22kN
- Limiting speed: 19000r/min
- Reference speed: 17000r/min
- SKF performance class: SKF Explorer
- Number of rows: 1
- Bore type: Cylindrical
- Cage: Non-metallic
- Radial internal clearance: CN
- Sealing: Without
- Lubricant: None
- Relubrication feature: Without
- Locating feature, bearing outer ring: None
- Tolerance class: Normal
- Number of flanges, outer ring: 0
- Loose flange: None
- Bearing part: Complete bearing
- Coating: Without
- Number of flanges, inner ring: 2
- Axial displacement capability: In both directions
