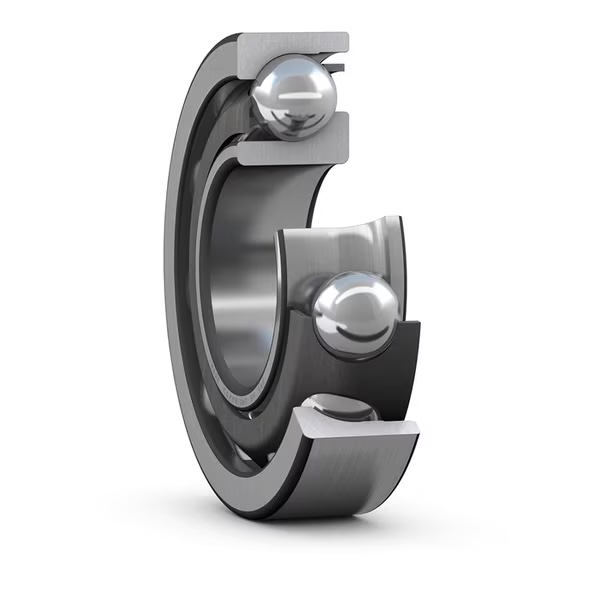

7214 BECBJ
| SKU | 7214 BECBJ |
|---|---|
| Product Type | Single Row Angular Contact Ball |
| Brand | SKF |
| Inside Diameter (I.D) | 70mm |
| Outside Diameter (O.D) | 125mm |
| Width (W) | 24mm |
These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
Additional specs
- Cage: Steel sheet metal
- Ring type: One-piece inner and outer rings
- Relubrication feature: Without
- Contact type: Normal contact (two-point contact)
- Axial internal clearance: Not applicable
- Tolerance class: Class P6 (P6)
- SKF performance class: SKF Explorer
- Locating feature, bearing outer ring: None
- Sealing: Without
- Reference speed: 6300r/min
- Universal matching bearing: Yes
- Material, bearing: Bearing steel
- Basic dynamic load rating: 72kN
- Number of rows: 1
- Basic static load rating: 60kN
- Limiting speed: 6300r/min
- Coating: Without
- Matched arrangement: No
- Lubricant: None
- Matched condition (axial clearance/ preload): Axial clearance CB
