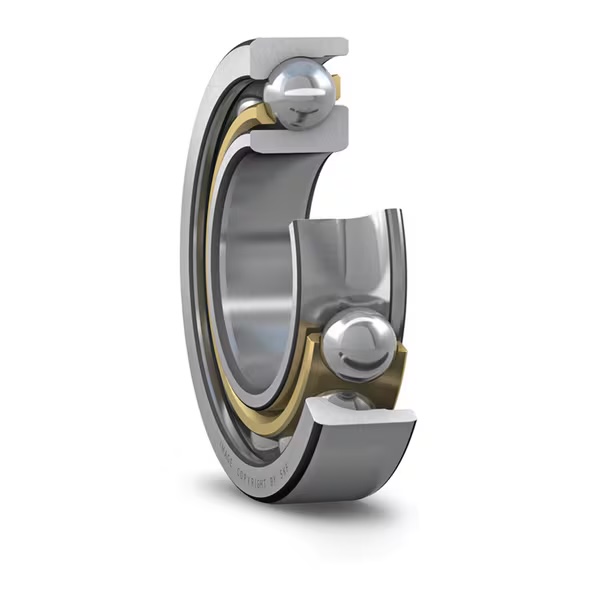

7204 BECBM
| SKU | 7204 BECBM |
|---|---|
| Product Type | Single Row Angular Contact Ball |
| Brand | SKF |
| Inside Diameter (I.D) | 20mm |
| Outside Diameter (O.D) | 47mm |
| Width (W) | 14mm |
These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
Additional specs
- Basic static load rating: 8.15kN
- Universal matching bearing: Yes
- Locating feature, bearing outer ring: None
- Reference speed: 19000r/min
- Relubrication feature: Without
- Limiting speed: 26000r/min
- SKF performance class: SKF Explorer
- Ring type: One-piece inner and outer rings
- Material, bearing: Bearing steel
- Basic dynamic load rating: 14.3kN
- Tolerance class: Class P6 (P6)
- Number of rows: 1
- Axial internal clearance: Not applicable
- Cage: Machined brass
- Contact type: Normal contact (two-point contact)
- Sealing: Without
- Lubricant: None
- Matched arrangement: No
- Coating: Without
- Matched condition (axial clearance/ preload): Axial clearance CB
